System Overview
infoceanus command supports the safe operation of ships with situational awareness technology that uses general-purpose visible light cameras and computer vision.
Icons marked up on the map using the map annotation function can be shared not only within your company but also with all users by setting the sharing range. It is also equipped with a route navigation function that displays information in a dialog when approaching preset buoys or targets at sea. We provide criteria for confirming course and safe ship maneuvering.
We will contribute to the safe operation of ships with an unprecedented new communication style.
Equipment specifications
For specifications and details of each equipment, please refer to "2. Component Dimensions".
-

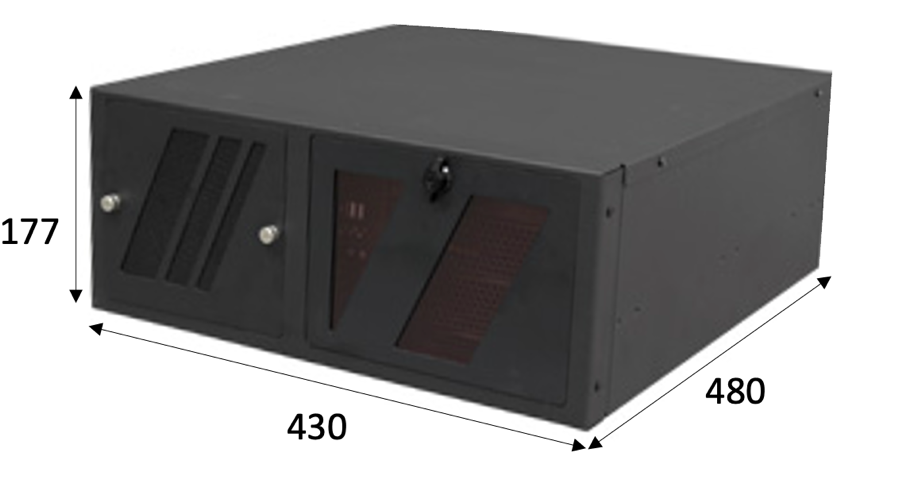

Edge Server : Box type (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|---|
OS |
Ubuntu Server |
It recognizes objects such as ships and buoys on the sea based on images from visible light cameras. It also receives signals from navigational instruments and displays the position of own ship and other ships on the map.
LCD monitor, keyboard, and mouse included (for maintenance)
-

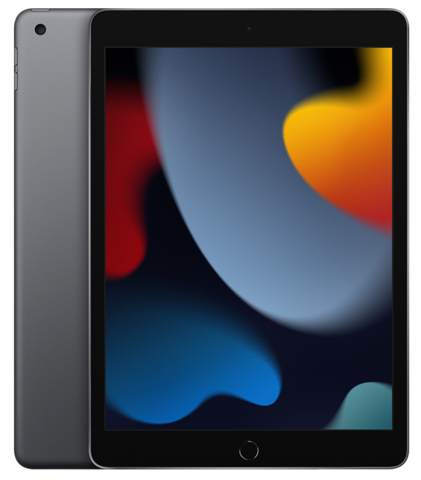

iPad (1 unit)
| Installation location | Wheelhouse |
|---|---|
OS |
iPadOS |
Objects recognized by the edge server are displayed together with visible light camera images. Displays the position of own ship and other ships on the map.
(electronic navigational chart ENC is optional)
-

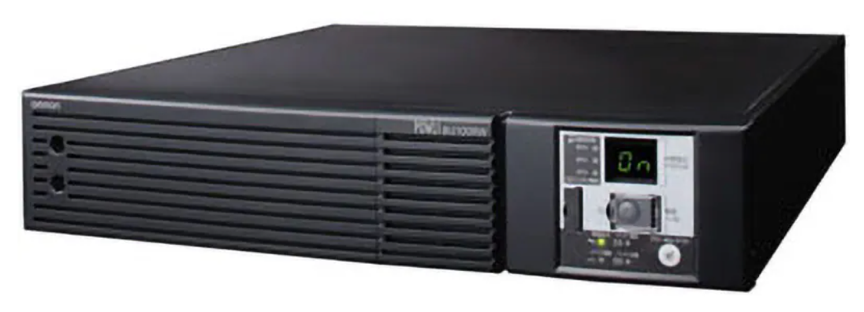

Uninterruptible Power System : UPS (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|
Backs up the power for infoceanus command equipment to prevent power outages such as power outages and land power switchovers. (1kVA)
-

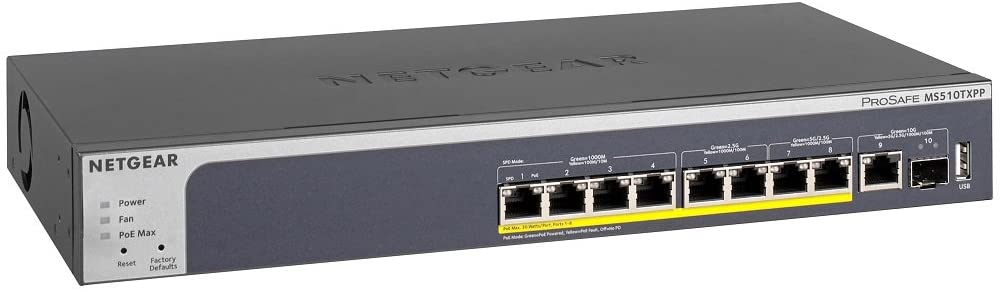

PoE HUB - 10 ports (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|---|
Specification |
1Gbit port x 4, 2.5Gbit port x 2, 5.0Gbit port x 2, 10Gbit port x 1, SFP slot x 1) |
It is used to supply power to the visible light camera and to communicate images from the visible light camera.
-

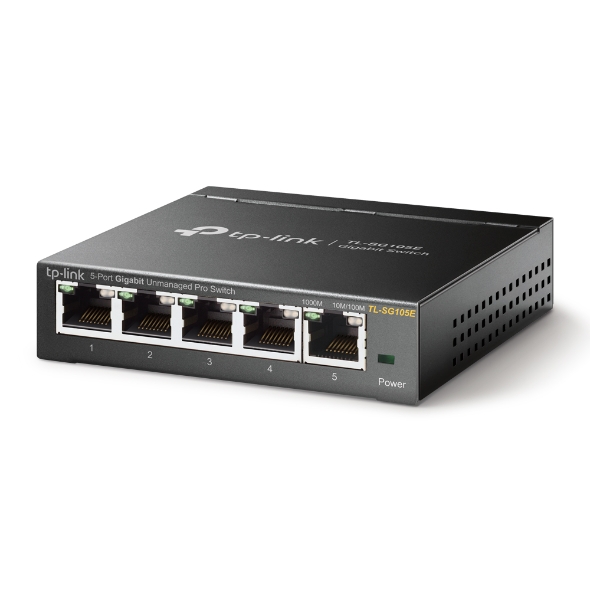

PoE HUB - 5 ports (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|---|
Specification |
1Gbit port x 5 |
It will be used to receive navigational instrument data, supply power to the iPad, and serve as a communication network.
-
IMU（Inertial Measurement Unit） (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|
Measure the pitch angle and roll angle of the hull.
-
Signal converter (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|
Input the pitch angle and roll angle data received from the IMU and distribute it to the network.
-
Visible light camera (3 units)
| Installation location | Installed on the compass deck. |
|---|
The orientation of the visible light cameras is one on the port side, one on the front, and one on the starboard side.
*These visible light cameras are installed inside the camera housing.
-
Camera Housing (1 unit)
| Installation location | Installed on the compass deck. |
|---|
*Please make a stand to attach the camera housing.
-

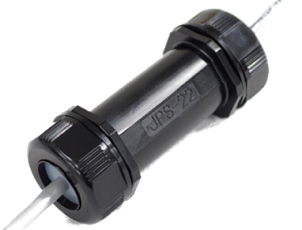

LAN cable connection coupler (3 units)
| Installation location | Installed on the compass deck. |
|---|
A waterproof coupler that connects the LAN cable from the visible light camera and the LAN cable from inside the ship.
-

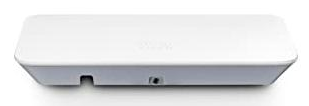

Wi-Fi Access Point (1 unit)
| Installation location | Wheelhouse |
|---|
An access point that connects the iPad and edge server via a wireless network.
-

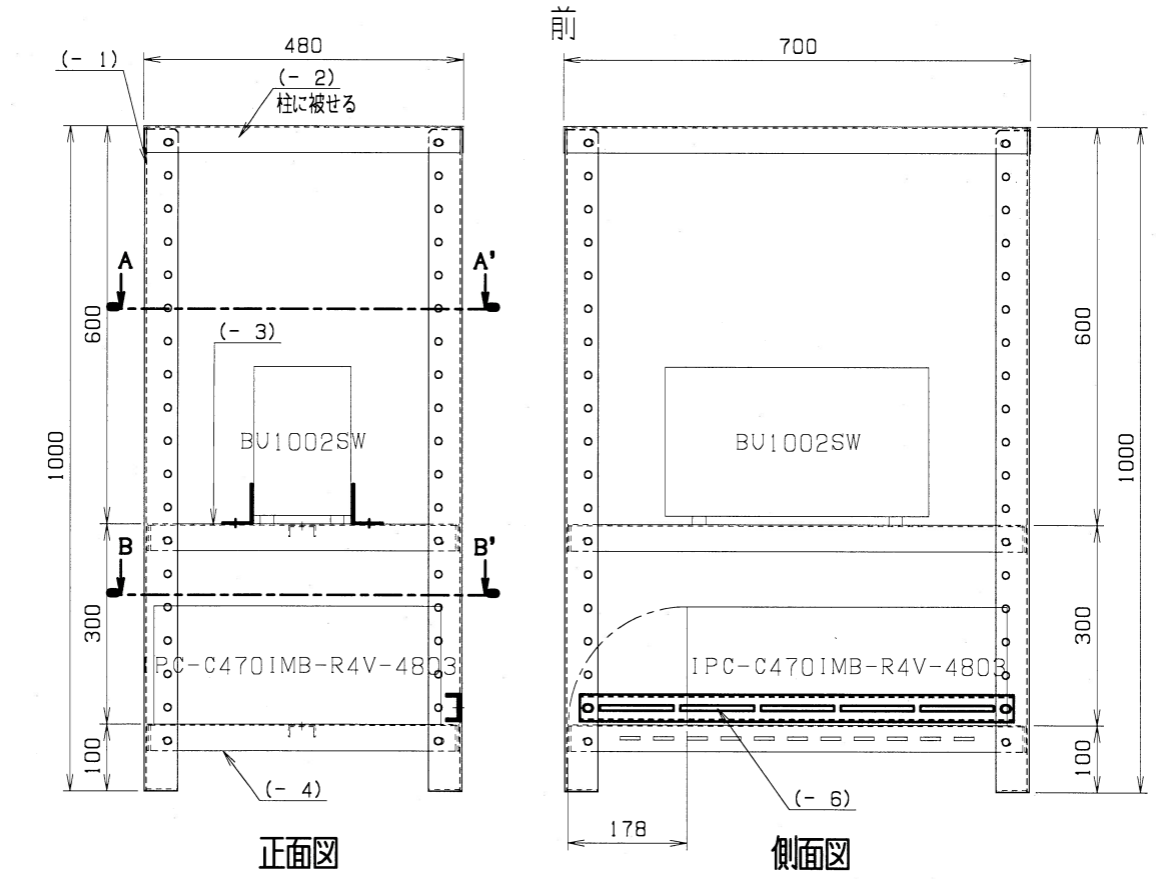

Dedicated rack (1 unit)
| Installation location | Electrical equipment room (mounted on a dedicated rack). |
|---|
A dedicated rack for mounting infoceanus command equipment.
Function
Build the infoceanus command using the components in the previous section.
-
Displaying camera images
Images from a visible light camera installed outside the own ship are displayed in real time on a terminal inside the ship via the network.
-
Recording camera images
Records images from a visible light camera installed outside the ship.
-
Display of navigation data
Data from navigational instruments is acquired and the following information is displayed on the ship’s terminal in real time.
-
GNSS ： Ship’s direction and speed
-
GYRO compass ： Heading of the ship
-
Wind direction anemometer ： Wind direction and speed
-
AIS ： Information on other ships
Data from navigational instruments is assumed to be output to the system via serial communication or Ethernet using the NMEA communication protocol.
-
Collision warning
Based on the received AIS information, DCPA (Distance Closet Point of Approach) and TCPA (Time Closet Point of Approach) are calculated and a warning is issued. Alarms can be set by distance (in 0.1 NM increments) with DCPA and time (in 1 minute increments) with TCPA.
-
Display AIS information
Based on the received AIS information, a list will be displayed on the screen in order of distance from the DCPA. Also, when you select a list, detailed information about AIS will be displayed.
-
Object detection and recognition
The following types of objects are recognized from visible light camera images, and bounding boxes are displayed for the recognized objects on the image. This makes it possible to identify small vessels, etc. that are not equipped with AIS.
-
Vessel
-
Passenger Vessel
-
Boat (Small ships)
-
Navigation Buoy
-
Fishing Buoy
-
Fishers Facility
-
Display map
Displays your own ship’s position and the positions of other ships received by AIS on the map. The map display can be either north-up or course-up, centered on your own ship, and you can also freely change the map display angle.
-
Labeling
You can create labels for locations on the map. You can use this label not only for yourself, but also to make it public to your company’s users or share it with all users.
Note : An internet connection is required to start this system. Please prepare an environment
where you can connect to the Internet from inside the ship.

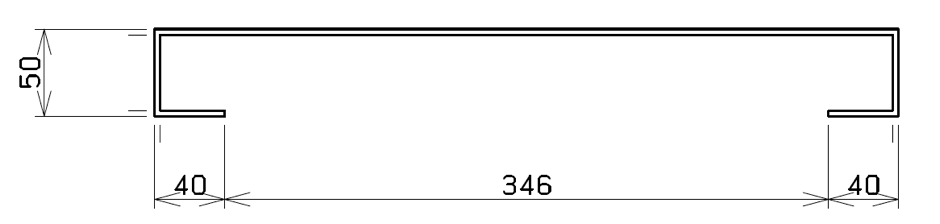

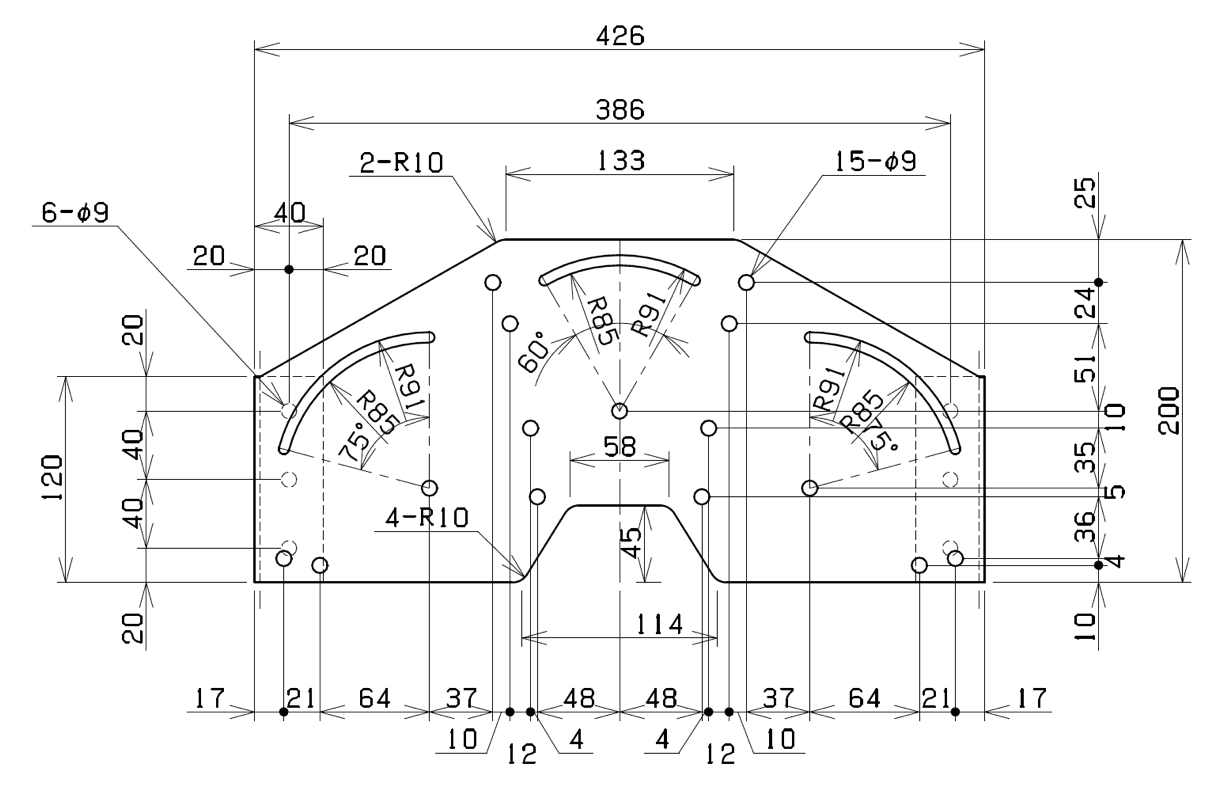

Component Dimensions
Component Lists
| No | Item | Specification | Qty | Remarks | |
|---|---|---|---|---|---|
1 |
Edge Server |
Input voltage: OS: CPU: RAM: HDD: LAN: Weight: |
AC100V-220V Ubuntu 2.2 Intel Core i9-10990E(2.8GHz) 64 GB SSD 1TB + HDD 4TB X550-T2(1GbE x 2) 16 kg |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) The following equipment is included for maintenance LCD monitor Keyboard Mouse |
2 |
iPad |
OS: Storage: Display size: Weight: |
iPadOS 64 GB 10.2 inch 489 g |
1 |
Wheelhouse x 1 For displaying and operating applications |
3 |
UPS |
Input voltage: Output voltage: Output capacity: Backup time: Charging time: Weight: |
AC100～120V AC100～120V 1.0 kVA 7 minutes (800W) 8 hours 20 kg |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) Output frequency (50/60Hz fixed) |
4 |
PoE HUB (10 port) |
Input voltage: MPC: Ports: PoE: Weight: |
AC100～240V 234.31 W 1GbEx4, 2.5GbEx2, 5GbEx2, 10GbEx1, 10Gb SFPx1 PoE+ (IEEE802.3at)x8 1.9 kg |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) |
5 |
PoE HUB (5 port) |
Input voltage: MPC: Ports: PoE: Weight: |
AC100～240V(AC adapter) 4.52 W 1GbEx5 PoE+ (IEEE802.3af/at)x4 220 g |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) |
6 |
IMU |
Input voltage: MPC: Output port: DMP: Weight: |
DC4.5〜7.2V(USB Type-A) 300 mA D-SUB9pin RS232C Acceleration, Gyro, Magnetic sensor each 3 axis DMP processer 76 g |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) Include serial module for signal output |
7 |
Signal converter |
Input voltage: MPC: Interface: Weight: |
DC12〜48V（AC adapter） 2.66 W D-SUB9pin x1 (RS232/422/485) 10/100BaseT（RJ45） x1 175 g |
1 |
Electrical equipment room x 1 (mounted on a dedicated rack) |
8 |
visible light camera |
Input voltage: consumption: Interface: Sensor size: Focal length: Iris: Protection class: Weight: |
PoE(IEEE802.3af) 3.1 W 1000Base-T（RJ45） x1 1/1.55 type CMOS 6 mm F1.9〜F16 IP67 167 g |
3 |
Compass deck x 3 Equipped inside the camera housing |
| No | Item | Specification | Qty | Remarks | |
|---|---|---|---|---|---|
9 |
Camera housing |
Material: Painting: Weight: |
T=3.2 steel plate White XX kg |
1 |
Compass deck x 1 |
10 |
LAN cable connection coupler |
Material: cable outer diameter: Protection class: |
Polyamide resin UL94V-0 φ6.0〜φ6.8 mm IP67 |
3 |
Compass deck x 3 |
11 |
Wi-Fi Access point |
Output voltage: MPC: Interface: Wireless: Weight: |
PoE(IEEE802.3af) or DC12V 11 W 1000Base-T(RJ45) x 1 2.4GHz 802.11b/g/n 5GHz 802.11a/n/ac 270 g |
3 |
Wheelhouse x 3 |
12 |
dedicated rack |
Material: Size: Weight: |
2.3 steel plate W700 x D400 x H1000 mm ? kg |
1 |
Electrical equipment room x 1 |
System configuration
Equipment configuration diagram
Solid line equipment and cables are under the control of JRCS.
Dotted line equipment and cables are outside the control of JRCS.
*1) Three visible light cameras are located inside the camera housing.
*2) LAN cable for visible light cameras. (CAT6A)
*3) LAN cable protected by armor (CAT6E)
*4) Input ship position, ship speed, wind direction, wind speed, heading
direction, and AIS data using NMEA signals.
Uninterruptible Power system
(UPS)
(*4)
Signal converter
(*1）
Wheelhouse
LAN cable connection coupler
LAN cable connection coupler
LAN cable connection coupler
Visible light camera
(Starboard)
Visible light camera
(Center)
Visible light camera
(Port)
Camera housing
Compass deck
Onboard AC power supply outlet (input)
LAN(CAT6E)
USB
LAN（CAT7）
LAN(CAT6E)
LAN(CAT6E)
USB Adapter
HDMI
LAN(CAT6E)
SERIAL
Option
Mouse
USB
Keyboard
LCD
Internet
Router
Wi-Fi
AP
USB
LAN
(CAT6E)
VDR
Antenna cable
Antenna cable
ROVER
Antenna
BASE
Antenna
PoE HUB (5port)
Receptacle
Edge Server
LAN
（*2）
LAN
（*2）
LAN
（*2）
LAN
（*3）
LAN
（*3）
LAN
（*3）
PoE HUB (10port)
IMU
Connection diagram
In the connection diagram shown, the cables marked with solid lines are under the control of JRCS, but due to equipment placement and cables marked with dotted lines that go through walls are under the jurisdiction of the shipyard.
【Symbol explanation】
| Symbol | Explanation | Symbol | Explanation |
|---|---|---|---|
ICMD AP |
Wi-F Access Point |
ICMD KB |
Keyboard |
ICMD CAM |
Visible light camera |
ICMD LCD |
LCD Monitor for Edge Server |
ICMD EDGE |
Edge Server |
ICMD MS |
Mouse |
ICMD HSG |
Camera housing |
ICMD POE10 |
PoE HUB (10 port) |
ICMD IMU |
IMU unit |
IC RECU |
Receptacle (for sharing UPS power) |
ICMD IPAD |
iPad |
ICMD SI |
Signal converter |
ICMD JNC |
LAN cable connection coupler |
ICMD UPS |
Uninterruptible Poser System |
【Notation explanation】
| 記号表記 | 内容 |
|---|---|
Equipment under the control of JRCS |
|
Equipment outside the control of JRCS |
|
Cable under the control of JRCS |
|
Cable outside the control of JRCS |
|
Wall outlet |
|

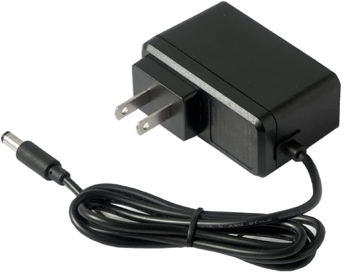

Outlet attached to the equipment, AC adapter |
|
LAN cable under the control of JRCS |
|
LAN cable outside the control of JRCS |
|
ICMD RECU ④3P |
④ : The circled number is the number of inlet, 3P : Connector shape |
Power supply diagram
Solid line equipment and cables are under the control of JRCS.
Dotted line equipment and cables are outside the control of JRCS.
Electrical equipment room
INPUT
Wall outlet
MSB2
AC*V
ICMD UPS
ICMD LCD
ICMD EDGE
ICMD POE10
ICMD
RECU④3P
ICMD IMU
ICMD SI
ICMD POE05
Network connection diagram
Solid line equipment and cables are under the control of JRCS.
Dotted line equipment and cables are outside the control of JRCS.
Electrical equipment room
Compass deck
ICLAN000
CAT7
ICLCD000
Starboard side
USB2
USB1
ICMD
MS
ICMD
KB
Center
Port side
4
ICMD POE05
ICLAN000
CAT6E
en01
ICMD EDGE
HDMI
ICMD
LCD
ICLAN000
CAT7
enp350f0
9
7 6 8
ICMD POE10
ICLAN000
CAT6E
ICLAN000
CAT6E
ICLAN000
CAT6A
ICLAN000
CAT6A
ICLAN000
CAT6A
ICMD
JNC
ICMD
JNC
ICMD
JNC
ICMD HSG
ICMD CAM
ICMD CAM
ICMD CAM
Solid line equipment and cables are under the control of JRCS.
Dotted line equipment and cables are outside the control of JRCS.
Wheelhouse
Electrical equipment room
LAN
ICLAN000
CAT6E
ICLAN000
CAT6E
ICMD
IPAD
3
ICMD
AP
4
VSAT ROUTER
ICMD POE05
NMEA Sentence
-
GNSS
-
GYRO COMPASS
-
ANEMOMATER
VDR
VDR HUB
2
5
LAN
PORT1
ICMD
SI
RS232C
Serial cable
ICMD
IMU
